Features & Benefits
- 100% configurable to meet a wide range of industrial air filtration requirements.
- Optimized housing design with multiple filter media options.
- Application-specific filter media manufactured at our U.S. facility.
- Stand-alone control options available to meet system requirements.
- Custom leak-resistant ductwork options available.

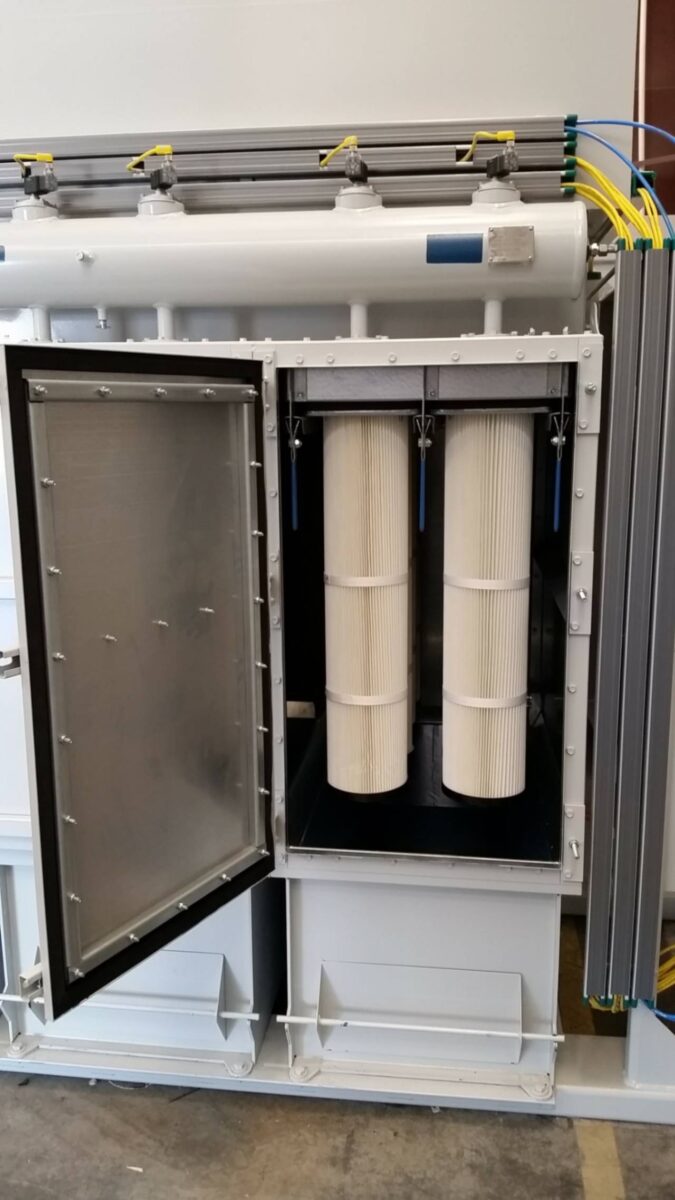

- Fast-access filter compartments allow for quick and easy filter changes.
- Optional HEPA filtration helps provide a cleaner work environment for employees.
- An optional VFD for blower motor control can help reduce energy costs while maintaining filtration performance.
- NFPA-safe options include explosion isolation flap valves, indoor or outdoor venting, and rotary valve discharges.
Product Range
- Capacity: 2,000 to 30,000 CFM.
- Stand-alone control options available for added flexibility.
- Custom-designed, leak-resistant ductwork options to fit your facility.
- Optional VFD blower motor control helps reduce energy costs.
Modern Modular Design

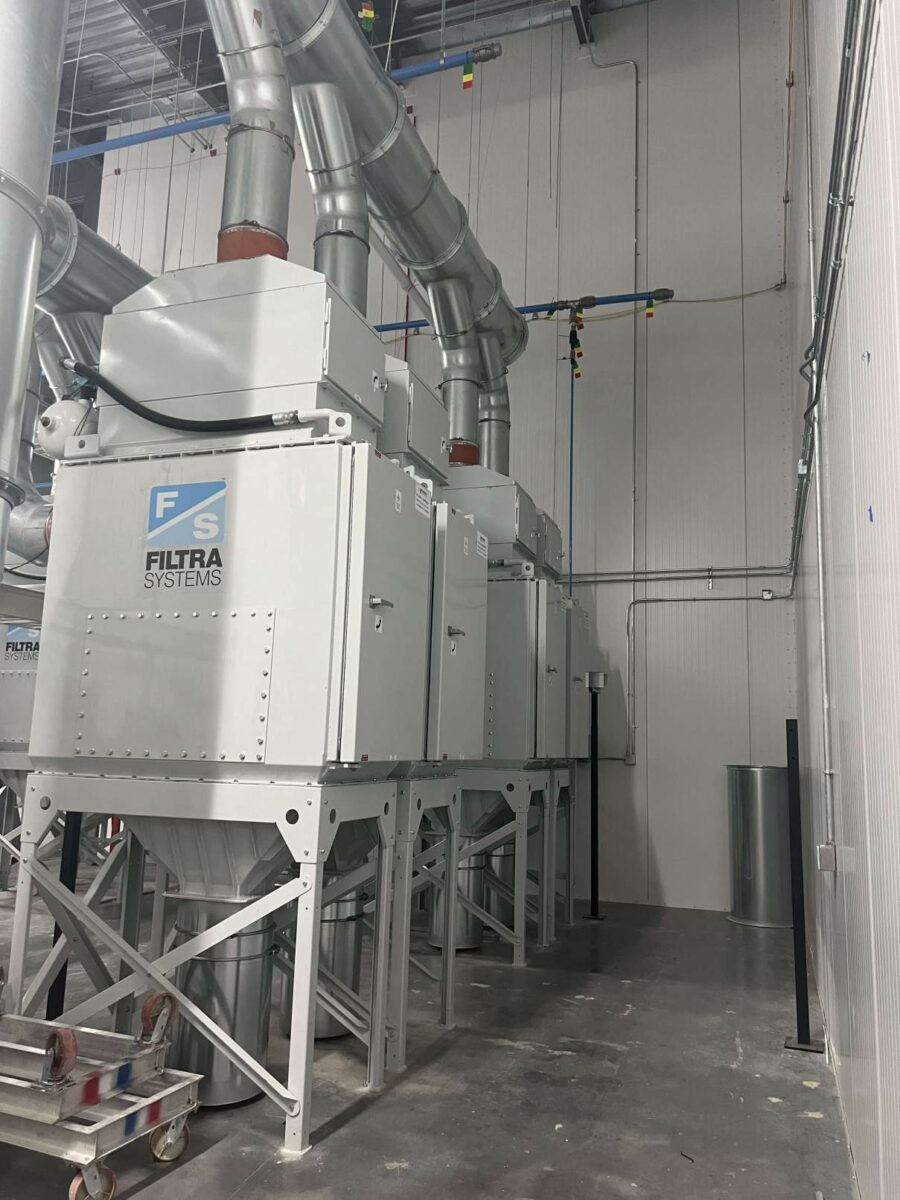

The Stealth®Z combines high-efficiency blowers with configurable primary and final filtration, including HEPA, nanofiber, and anti-static media options. Flexible discharge chutes, support legs, and control packages allow the system to be adapted to a variety of facility and application requirements.
Industries & Applications
- Automotive Castings and Components
- Carbon Black
- Cement, Concrete, and Aggregates
- Energy Pipelines
- Fabric Manufacturing
- Industrial Machinery and Equipment
- Industrial Processing
- Recycling
- Semiconductor Power Solutions
- Shot Black
- Specialty Chemicals
- Specialty Stone
- And Many More...
| Model | Filter Columns | Filters/Stage/Column | Number of Filters | Nominal Housing Dimensions | Max Airflow |
|---|---|---|---|---|---|
| Z1 | 2 | 2 | 4 | 33 in x 34 in | 3,000 |
| ZD | 2 | 4 | 8 | 33 in x 62 in | 6,000 |
| ZE-2×2 | 4 | 4 | 16 | 66 in x 62 in | 13,000 |
| ZE-2×3 | 6 | 4 | 24 | 99 in x 62 in | 20,000 |
| ZE-2×4 | 8 | 4 | 32 | 132 in x 62 in | 24,000 |
| ZE-2×5 | 10 | 4 | 40 | 165 in x 62 in | 30,000 |
| Z1 | 2 | 2 | 4 | 33 in x 34 in | 2,000 |
| ZD | 2 | 4 | 8 | 33 in x 62 in | 4,000 |
| ZE-2×2 | 4 | 4 | 16 | 66 in x 62 in | 8,000 |
| ZE-2×3 | 6 | 4 | 24 | 99 in x 62 in | 12,000 |
| ZE-2×4 | 8 | 4 | 32 | 132 in x 62 in | 16,000 |
| ZE-2×5 | 10 | 4 | 40 | 165 in x 62 in | 20,000 |
